[Noisebridge-discuss] Component ID assistance...
Tymm Twillman
tymmothy at gmail.com
Wed Aug 25 06:12:18 UTC 2010
http://forum.hddguru.com/seagate-barracuda-7200-st3300622a-300gb-ide-t9356.html

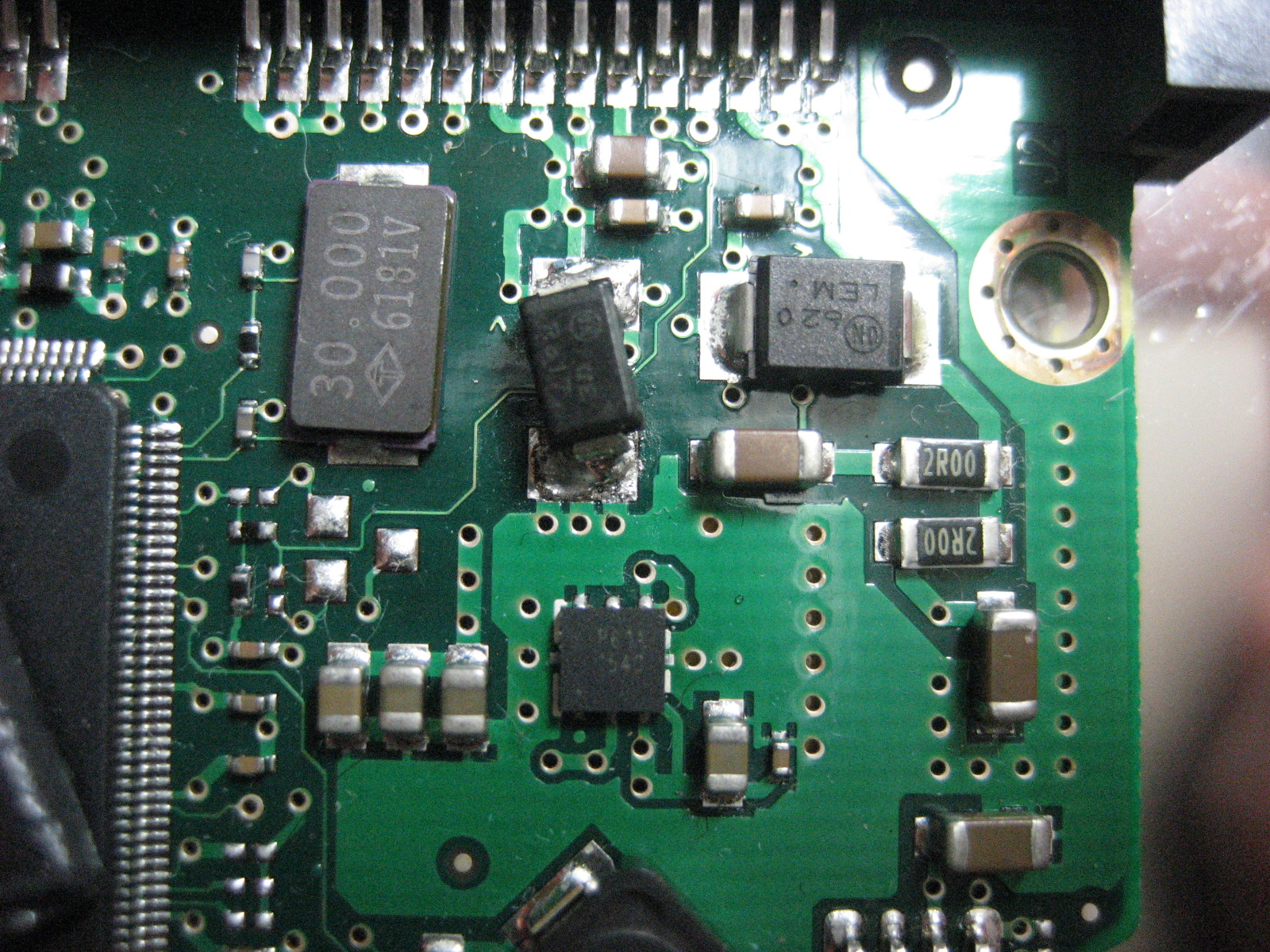

http://forum.hddguru.com/download/file.php?id=562
I'm going to guess that likewise it's a TVS diode. in fact... I'd guess it's a SMAJ5.0A-TR
http://www.st.com/stonline/products/literature/ds/5544/smaj.pdf
(see pages 7 & 8 for marking on these diodes)
Did this likely result from a power polarity issue?
On Aug 24, 2010, at 10:42 PM, Anthony C. Roberts wrote:
> Hi all,
>
> I somehow managed to let the smoke out of a Seagate SATA drive and was hoping to find some assistance identifying a fried component. Google has failed me thus far. My best guess is some sort of zener voltage reference diode, but I'm somewhat at a loss for ideas. I uploaded a couple photos to flickr, linked below.
>
> Macro:
> http://www.flickr.com/photos/anthony_c_roberts/4925090627/sizes/l/
> Zoomed out
> http://www.flickr.com/photos/anthony_c_roberts/4925090547/in/photostream/
>
> Thanks in advance.
>
>
> Cheers,
>
> Tony
